Module: Discrete_Lambda_Medial_Axis

Description:

Assigns to each pixel of the squared Euclidean distance map the radius of the smallest circle enclosing all the points of the background closest to said pixel.

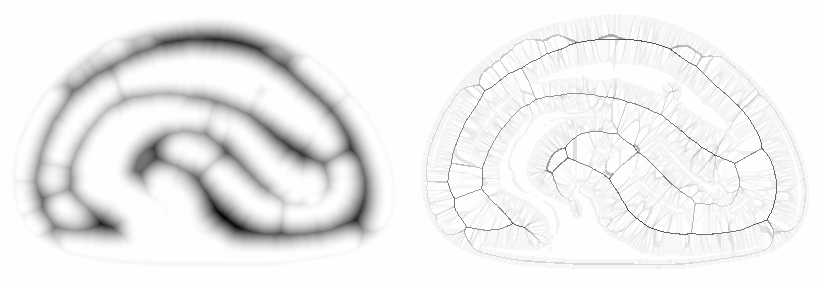

Left image: object; right image: distance map. These are cross-sections of 3D images.

Connections:


[required]
The input image comes in through this port. For now, the only input type that has been implemented is HxUniformScalarField3.

Ports:

Now

Push this button to compute.

Commands:

Additional options can be accessed when typing in the console Discrete_Lambda_Medial_Axis COMMAND_NAME. Typing the command again usually reverts back to original settings.

`verbose`

Displays timing information after the computation. Retype to hide info.

`create`

Runs the computation. Returns the name of the output, so it can be used in a script, such as set RESULT [Discrete_Lambda_Medial_Axis create].
